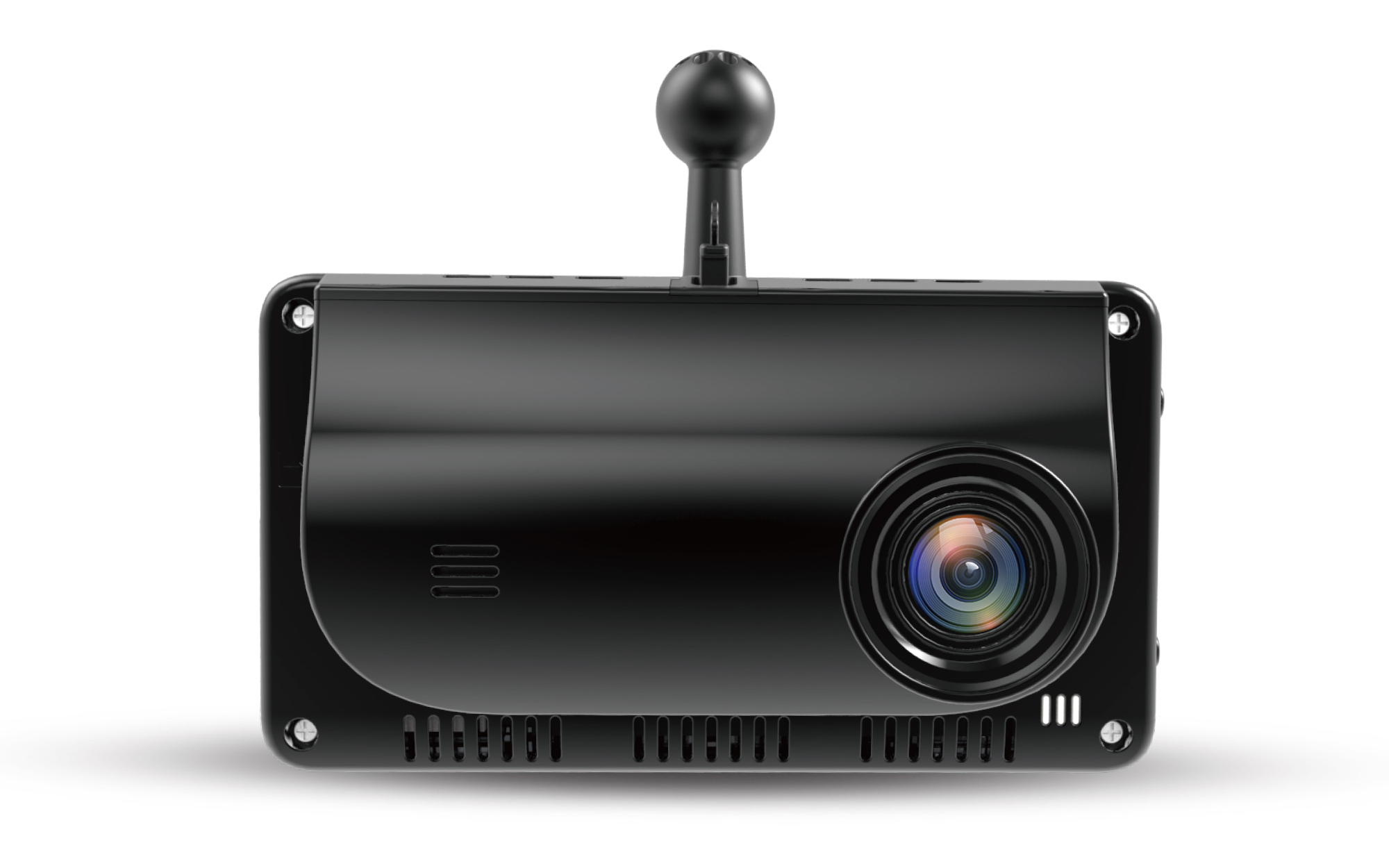

DashboardCam
DashboardCam
Key Features- Android 4.2 |
 |
 |
Specification
| Operating System | Android 4.2 |
| CPU | 1.6GHz |
| Memory | 16-bit DDR3 1GB |
| Internal Storage | 8GB/16GB |
| External Storage | TF-Flash, extendable to 32GB |
| Video | Movie Size and Frame Rate: Front camera - 1280x720 @30fps Rear camera - 1280x720 @30fps File Format: MP4 Compression: H.264 |
| Audio | File Format: WAV Compression: 16 bit 22KHz Sampling |
| Lens Angle | >100° |
| Focus Range | 0.5m to infinity |
| Exposure | Auto |
| White Balance | Auto |
| Image Sensor | CMOS OV5645 |
| Pickup System | Stereo |
| Display | 3.43" TFT Colour Touch Screen Resolution: 480x800 |
| Wireless Connection | WIFI: 802.11 b/g/n(2.4GHz) 3G/4G Bluetooth |
| Size | 120 x 67 x 33 mm |
| Weight | 160g |
| Working Temperature | -30°C to 55°C |
| Battery Capacity | Super capacitor 10F*2 |
| Power | Input: DC 12V-24V |
| Connection Port | Speaker Microphone Micro-B USB TF Card Slot MicroSIM Slot 3.5 DC Socket Split Camera Connector External GPS Connector (GPS Module and GPS External Antenna) |
| Playback | Play, Pause, Previous, Next, Time toolbar (draggable) Switch between Front and Rear camera |
| Preview | Front and Rear Camera show at the same time |
| Log | Power On/Off, Driver's info, Measurement Result, System Message |
| GPS | Support |
| Speeding Alarm | Support |
| Bluetooth Alcohol Tester | Support |
| Waterproof | IP20 |
Download
| File | Type | Upload Date | |
| Manual | will available soon | N/A | |
| Brochure | will available soon | N/A |
